HMMWV M998 Humvee Fuel Filter, Geared Hub, Oil Filter, Maintenance Kit
HMMWV M998 Humvee Fuel Filter, Geared Hub, Oil Filter, Maintenance Kit
Regular price
$290.00 USD
Regular price
Sale price
$290.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

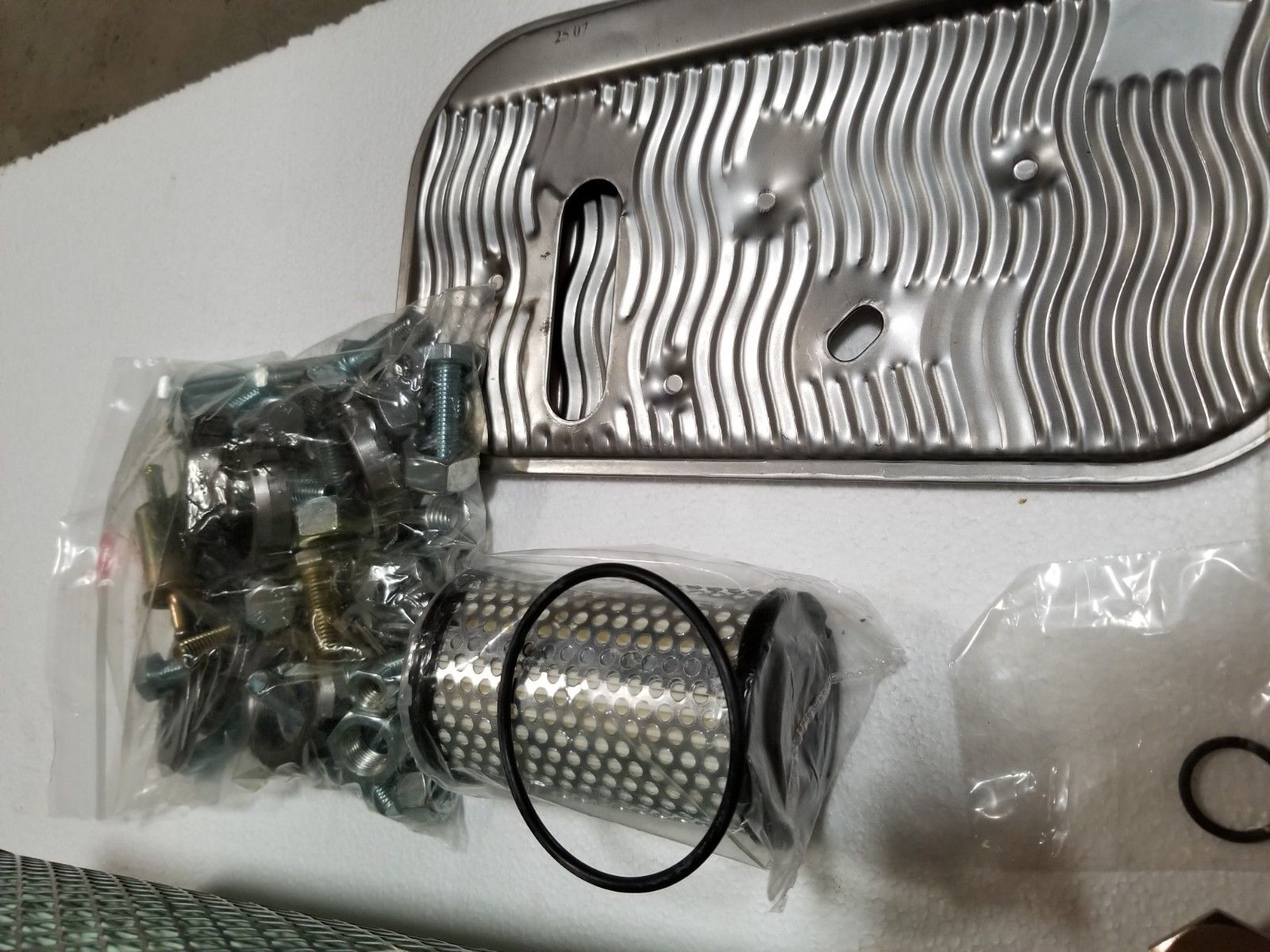

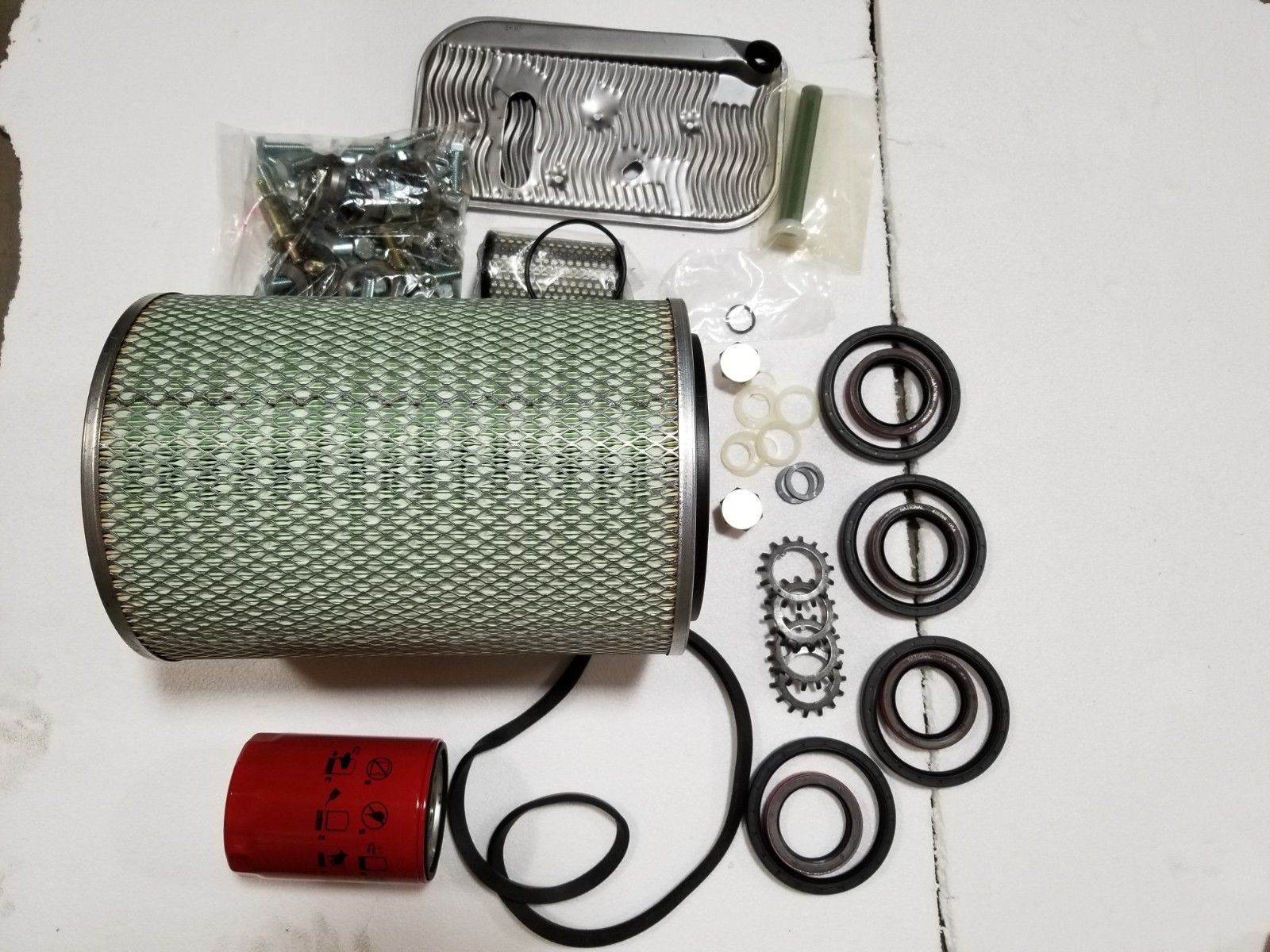

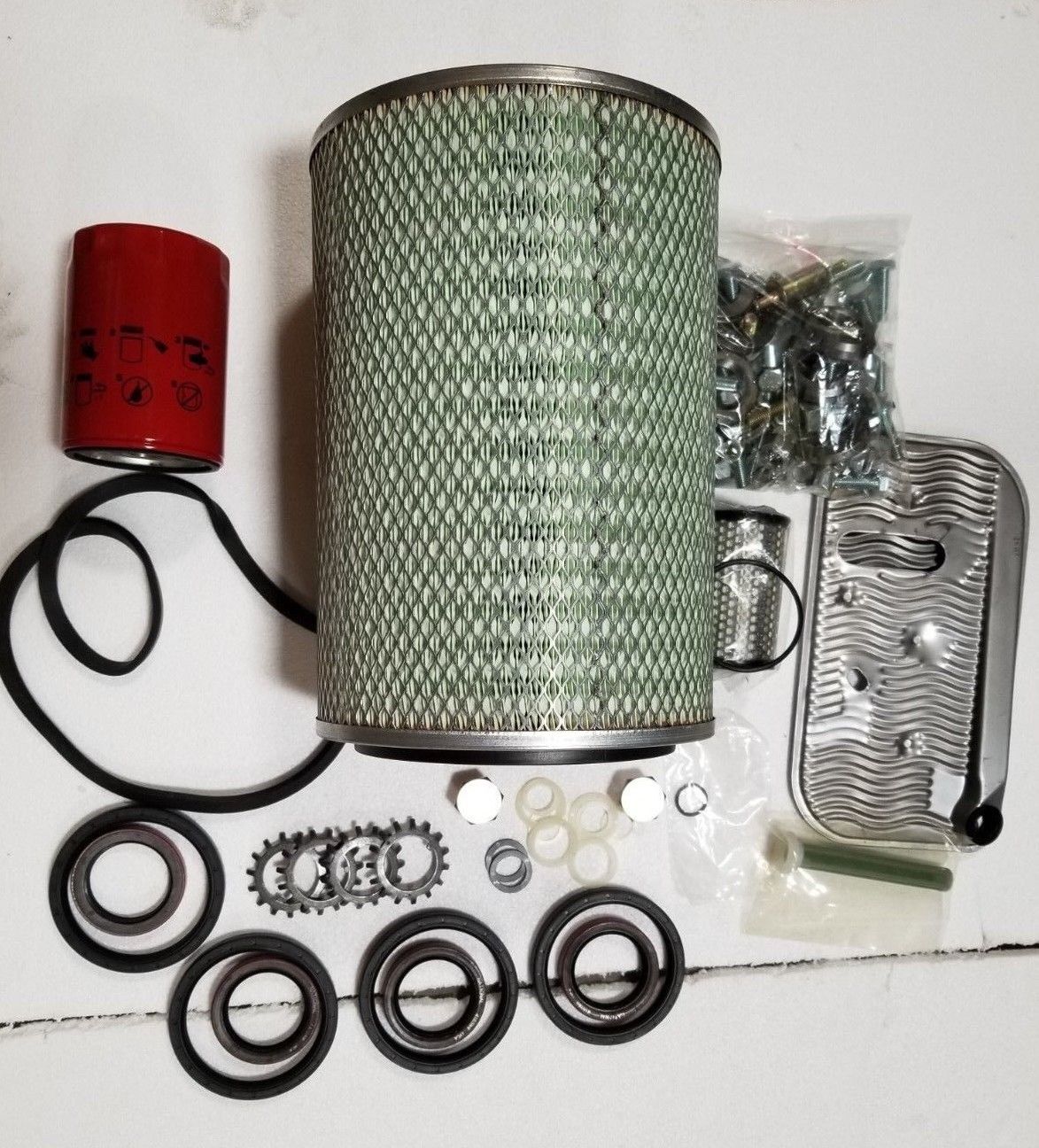

New HMMWV Modification Reset Kit
THIS IS THE MILITARY MAINTENANCE KIT USED TO PERFORM RESET MAINTENANCE ON THE HMMWV
Recommended to use this kit for every 6,000 miles driven or when purchasing a high mileage HMMWV.

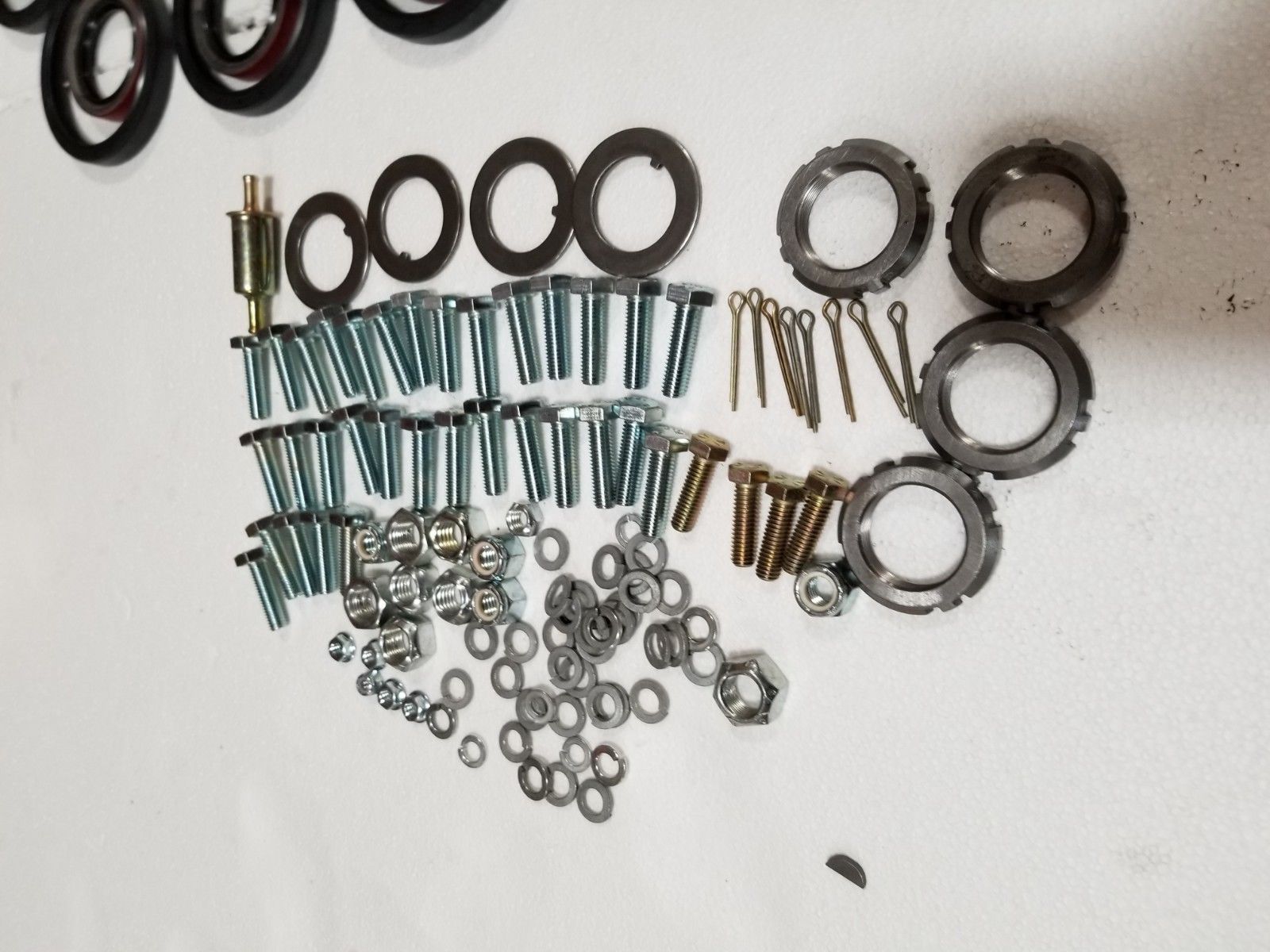

FILTER, FLUID PRESSURE KIT
(consist of the following items):
5305-00-061-4650 LOCKNUT ……………………...…1;
5310-01-252-2999 SELF-LOCKING NUT ……….…..4;
5310-00-449-2381 LOCKNUT ……………………..….4;
5315-00-616-5526 WOODRUFF KEY ……………….1;
5315-00-012-0123 COTTER PIN ………………….….1;
5310-00-061-4651 LOCKNUT ……………………..….1;
5310-00-935-9021 LOCKNUT ……………………..….1;
5310-00-488-3889 LOCKNUT ……………………..….4;
5310-00-763-8919 LOCKNUT ……………………..….2;
5310-00-407-9566 LOCKWASHER ……….………….2;
5310-01-213-4185 WASHER KEY ……………….…...4;
5310-01-382-5031 SELF-LOCKING NUT …….……...4;
5310-01-174-8607 WASHER KEY ……………….…...4;
2940-01-188-3776 FILTER ELEMENT ………….……1;
5330-01-452-2474 GASKET ……………………….…..1;
2910-01-210-5872 FLUID FILTER ………………….....1;
5310-00-011-5093 LOCKWASHER …………………...4;
5305-00-543-2419 HEX CAP SCREW ………………..4;
5306-01-185-7048 BOLT …………………………….....32;
5310-01-185-7218 LOCKWASHER …………………...32

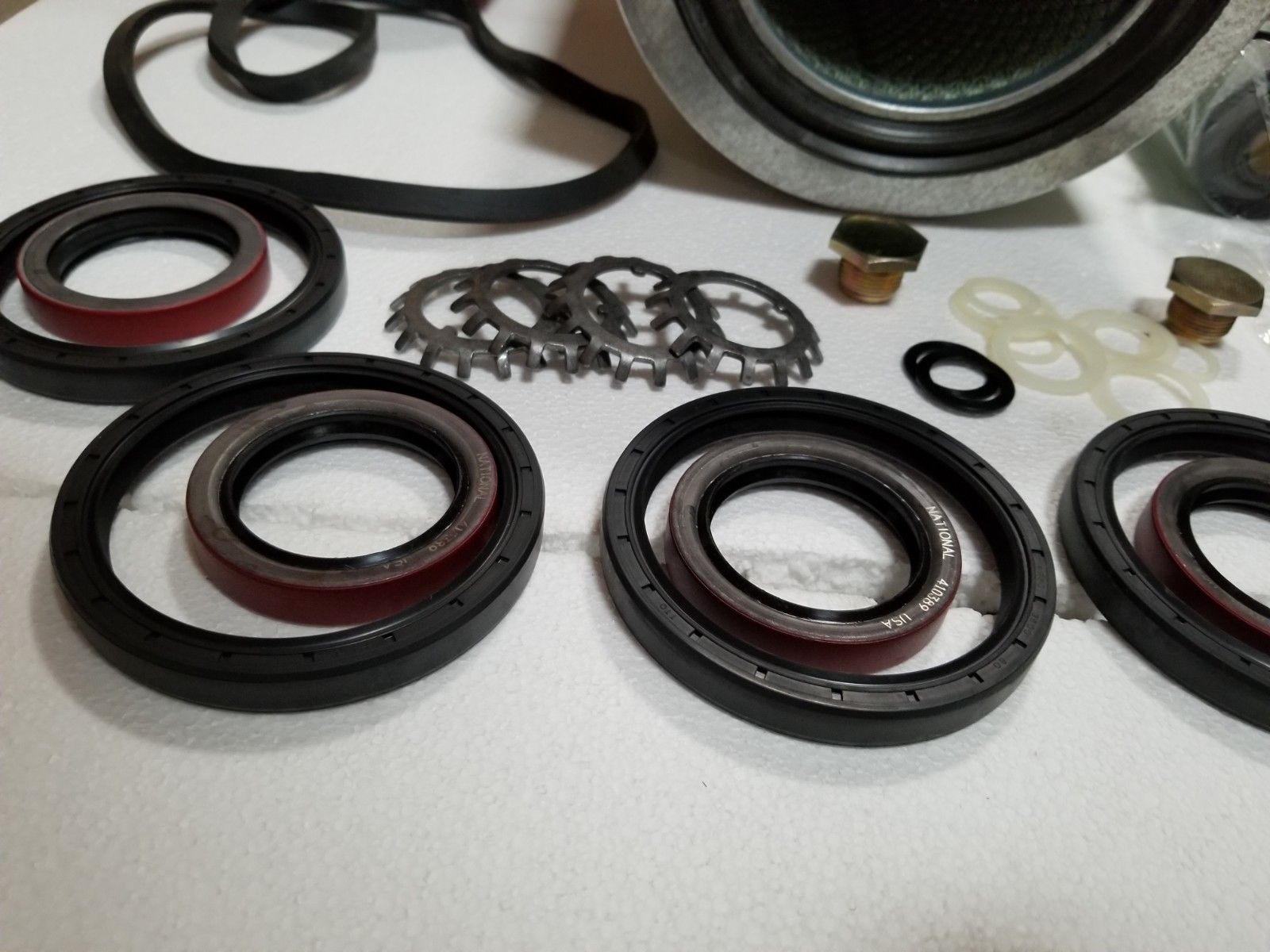

2. GEARED HUB PARTS KIT
(consist of the following items):
5330-01-456-3884 SEAL…………………………………4
5330-01-203-6551 SPINDLE SEAL……………………..4
5310-01-213-4185 LOCK WASHER, SPINDLE………..4
5310-01-176-0839 WASHER, FLAT…………………….4
5310-01-231-0596 WASHER, LOCK UPPER………….4
3. FUEL SEPARATOR NSN 4330-01-189-0889………….1
4. FUEL FILTER NSN ………………1
5. MACHINE TREAD PLUGS NSN 5365-01-305-7067…..2
6. TRANS. OIL FILTER KIT NSN 2520-01-121-6350…….1
7. OIL FILTER NSN ……………………1
FOR M998, M1038, M1025, M1026, M1037, M1097, M1113, M997 SERIES
